Door Frame Heaters







Cold store door frames should be heated to prevent ice build-up and malfunction.
We manufacture three systems:
• Low voltage stainless steel strip heating

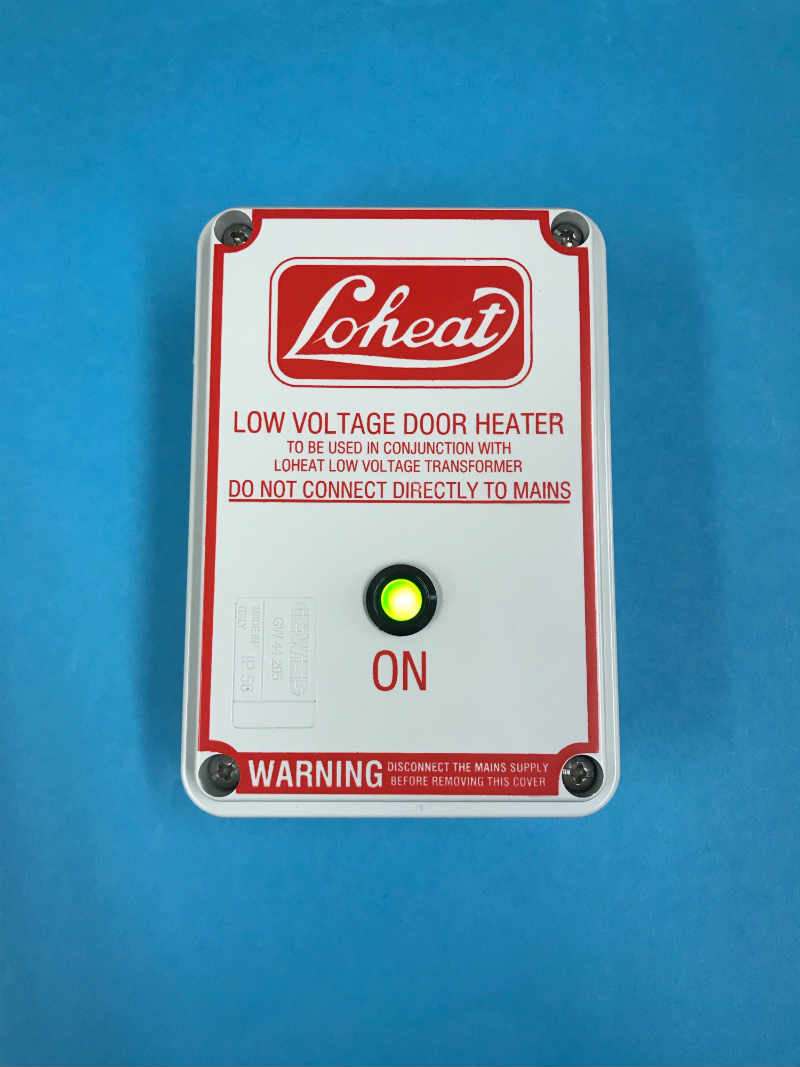

• Low voltage cable heating
• Mains braided cable heating

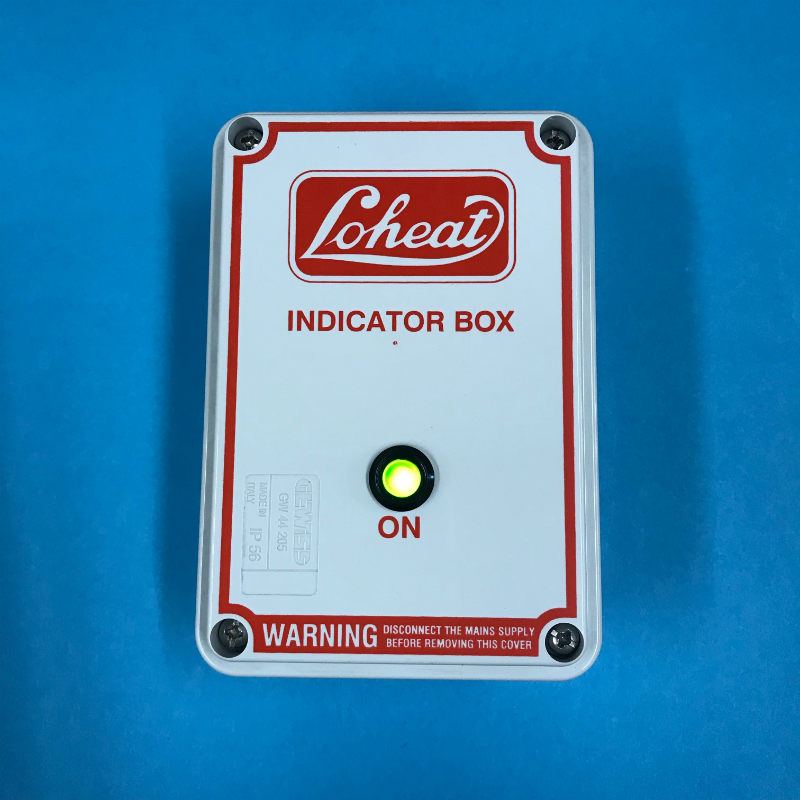

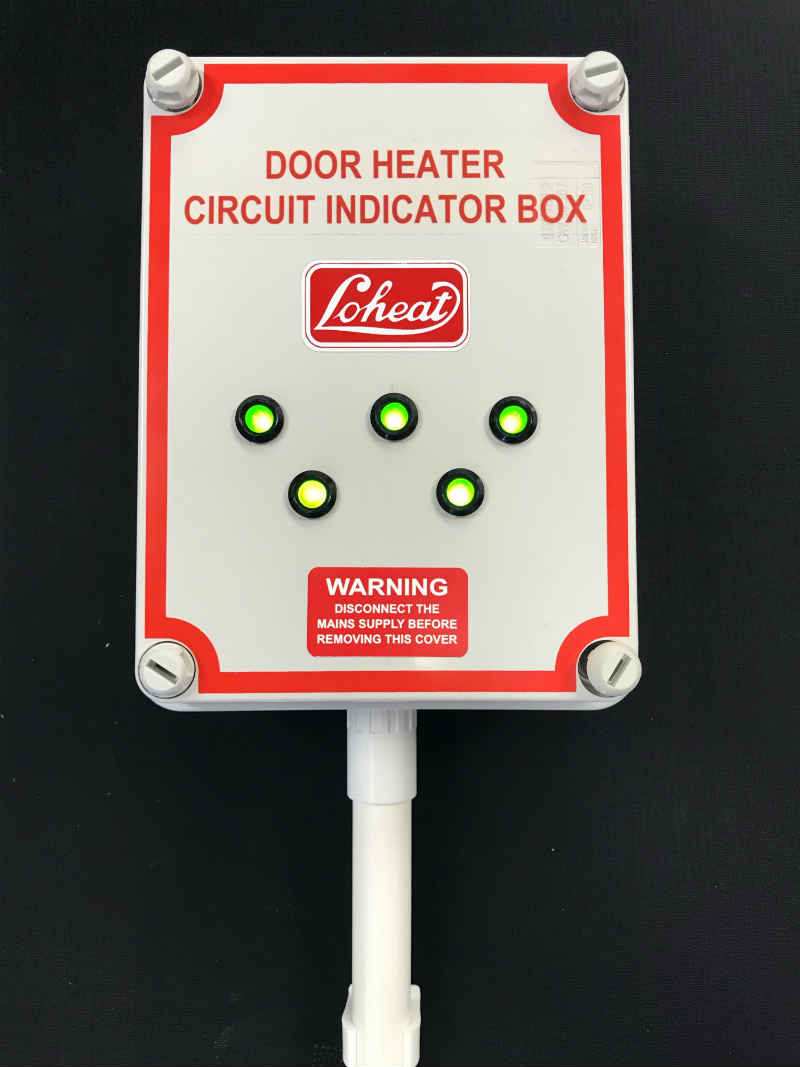

All three systems are available in the following configurations and have the option of an LED indicator to show that the heater circuits are operating correctly.

3-sided layout
Diagram showing positioning of 12.5mm stainless steel heating element fixed to 3 outer faces of the door frame

4-sided layout
Showing typical application of 25mm tape. In all cases, heating elements are terminated within our robust, splash-proof steel connection box

3-sided layout with separate threshold heater mat
Diagram showing positioning of 12.5mm stainless steel heating element fixed to 3 outer faces of the door frame with a threshold heater mat
Threshold mats are easily installed under the top screed & recommended for all external openings.

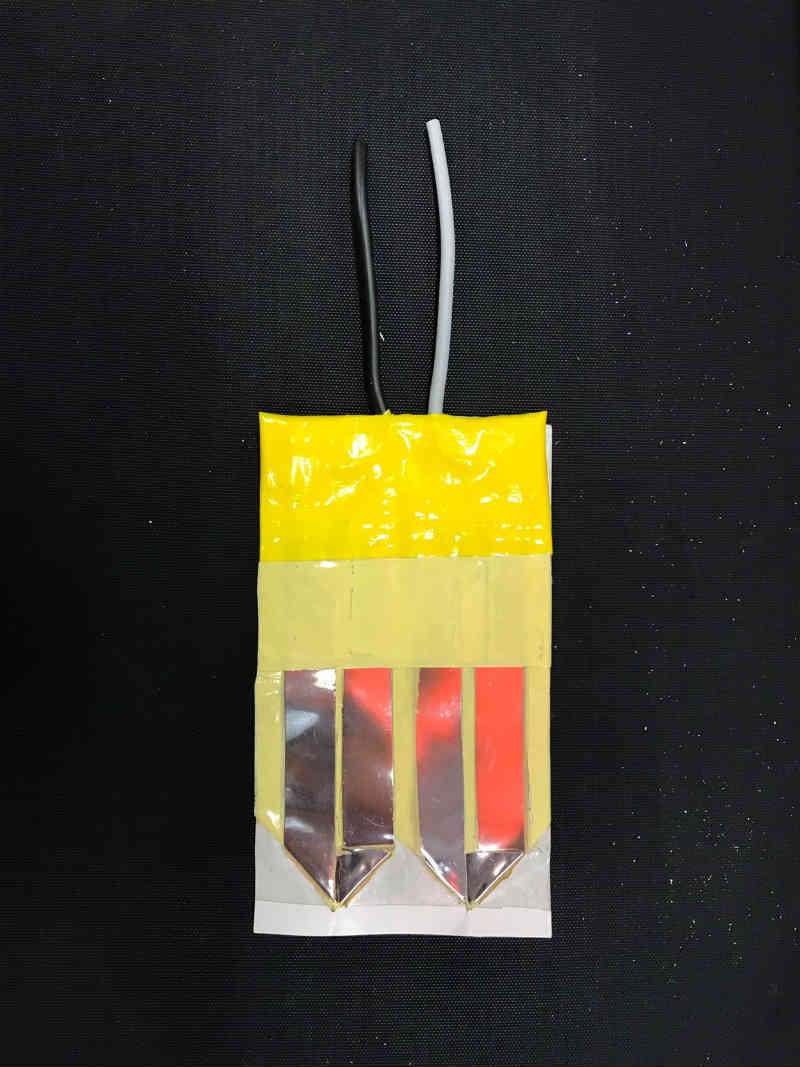

Blade/Leaf Heater
Used to prevent the door from freezing shut. Positioned on the underside of the coldroom door.

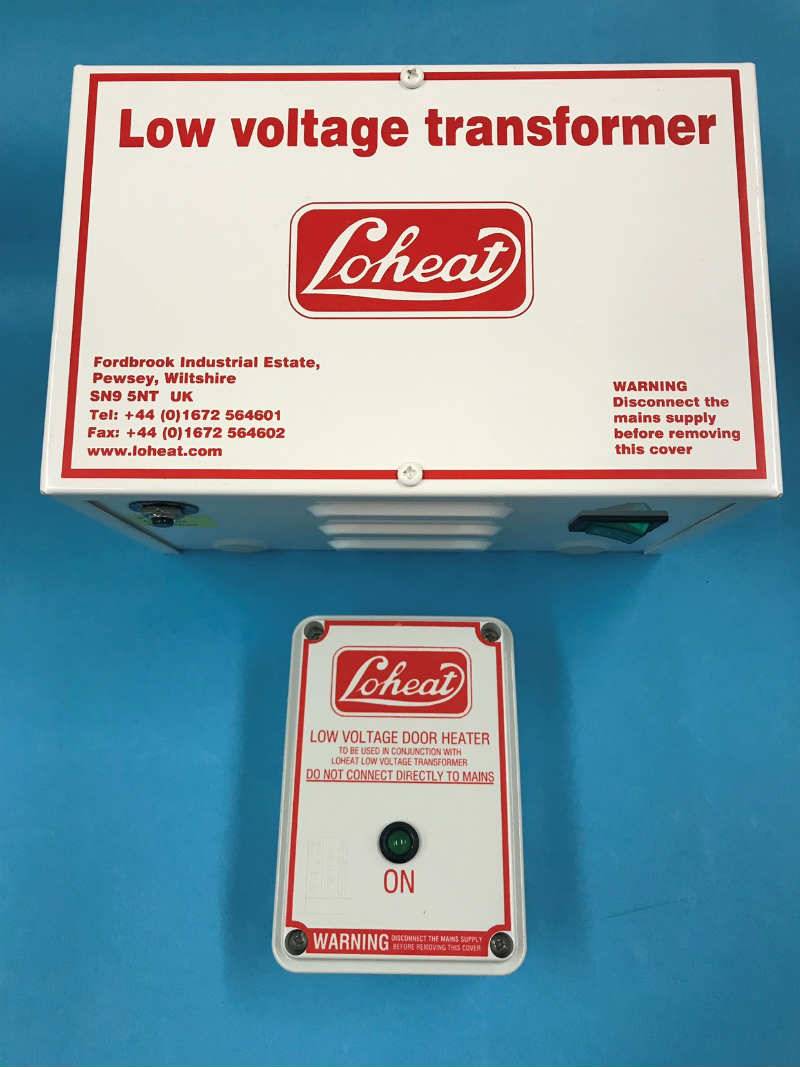

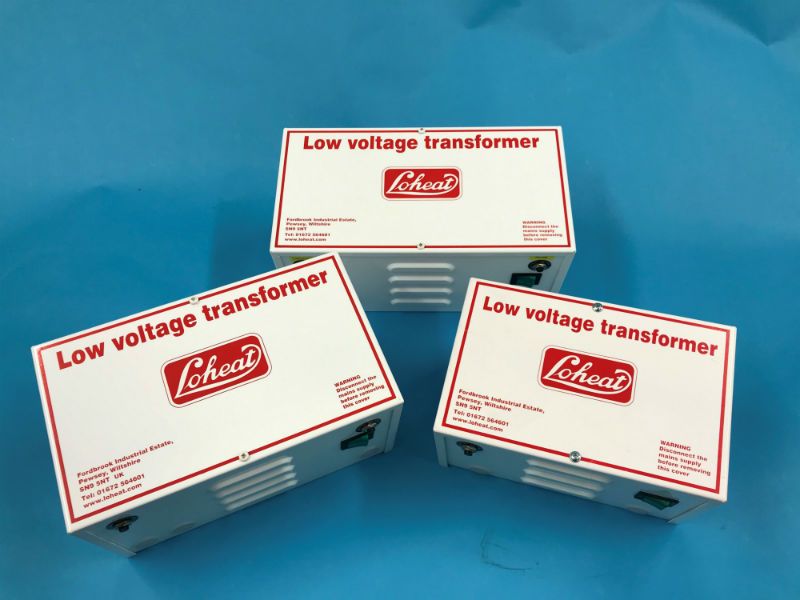

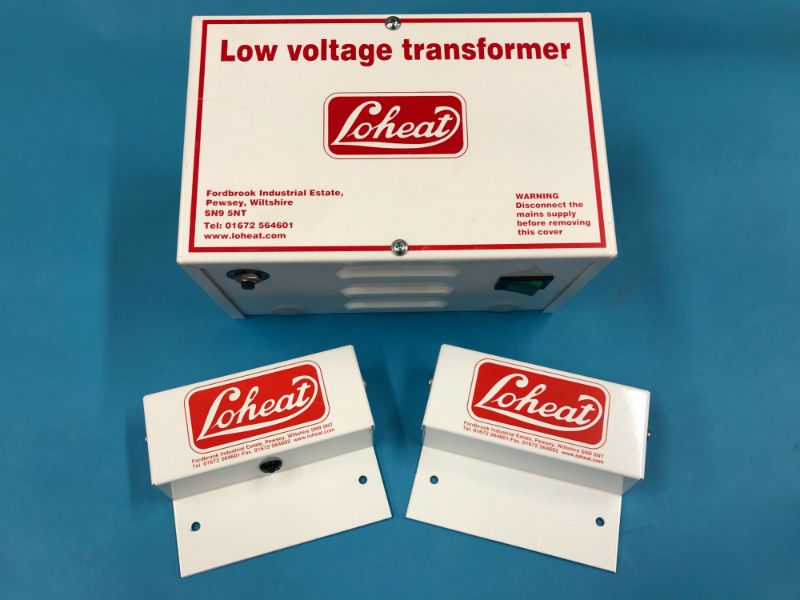

Operated using either its own transformer or a dual function transformer, powered continuously to keep a constant temperature

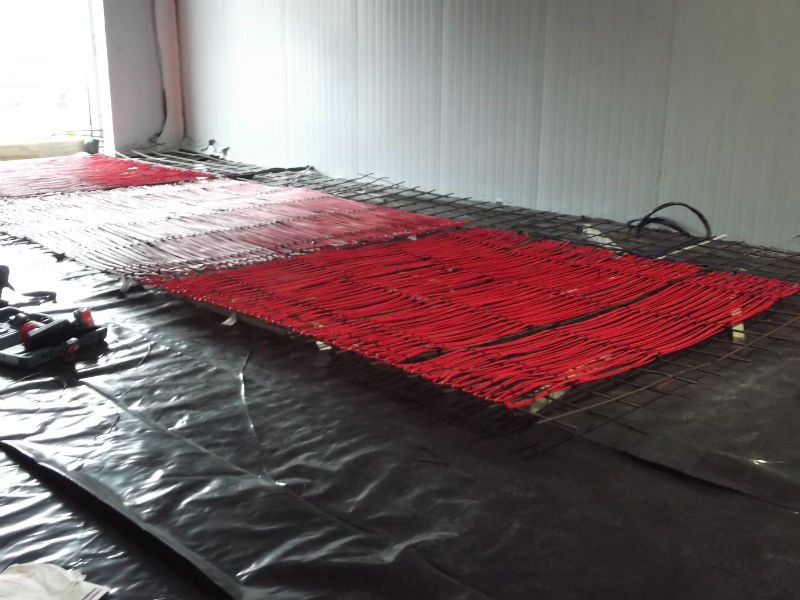

Loheat Slab Heaters – low voltage electric
Used to prevent the build up of ice around doorways or door openings
Operated using its own transformer, powered continuously to keep a constant temperature

Loheat Ramp Heaters – low voltage electric
Used to prevent the build up of ice on ramps, ramp heaters can be used internally or externally. The heating elements can be fitted underneath the concrete or on top of it under a chequered plate.
Operated using its own transformer, powered continuously to keep a constant temperature
